Secondary Reflectors
Matt Black
Dark Chrome
Chrome
White
Downlights · Trimless

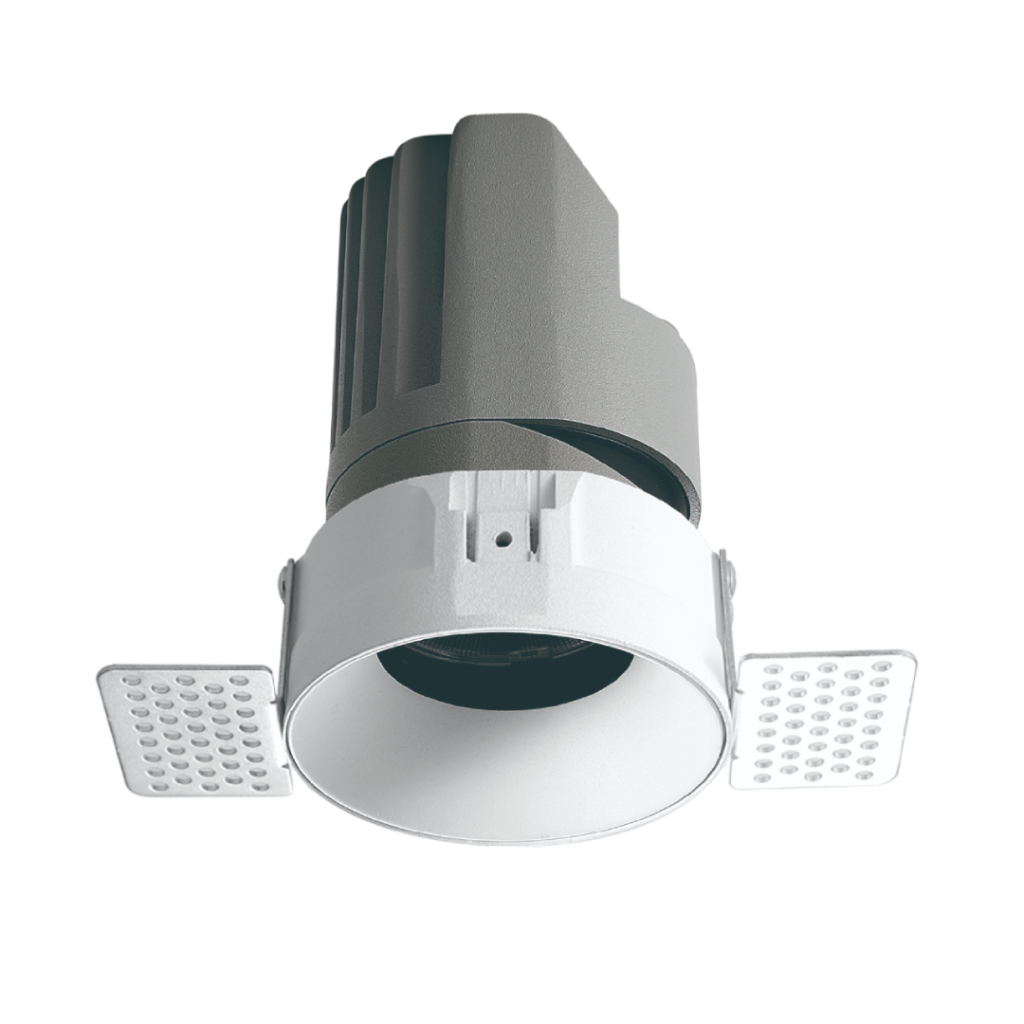

NT-9211B
LED spot light
- Power
- 18 W
- Beam direction
- Adjustable
- Beam angles
- 10° · 15° · 24° · 36° · 50°
Colour temperature
- 2700 K
- 3000 K
- 3500 K
- 4000 K
- 5000 K
- 6500 K
- Tunable white
Technical data
Specifications
Electrical & light
- Power
- 18 W
- Input voltage
- 220–240 V AC, 50 Hz
- CCT
- 2700K, 3000K, 3500K, 4000K, 5000K, 6500K, Tunable white
- CRI
- >80 standard · >90 (on request)
Optics
- Optics
- Lens
- Secondary optics
- Reflector
- Beam angles
- 10° · 15° · 24° · 36° · 50°
- Beam direction
- Adjustable
- Tilt
- Yes
- Swivel
- Yes
Installation & size
- Mounting
- Trimless
- IP rating
- IP20
- Outer size
- 85 × 85 mm
- Cut-out
- Ø 75 mm
- Height
- 90 mm
- Suitable for
- Hospitality
Optical Accessories
Honeycomb
ASYM Filter
Double ASYM
Linear Filter
Controls
On/Off as standard| Protocol | Dimming | Tunable white |
|---|---|---|
| DALI | ●Yes | ●Yes |
| Casambi | ●Yes | ●Yes |
| Zigbee | ●Yes | ●Yes |
| Bluetooth | ●Yes | ●Yes |
| Phase-cut | ●Yes | —No |
| Analog | ●Yes | —No |
Lighting effect
Five beams, one fixture
Select a beam angle to see its spread on floor and wall.
Specifying NT-9211B?
Send us your layout. We will confirm optics, colour temperature and controls for your project.
